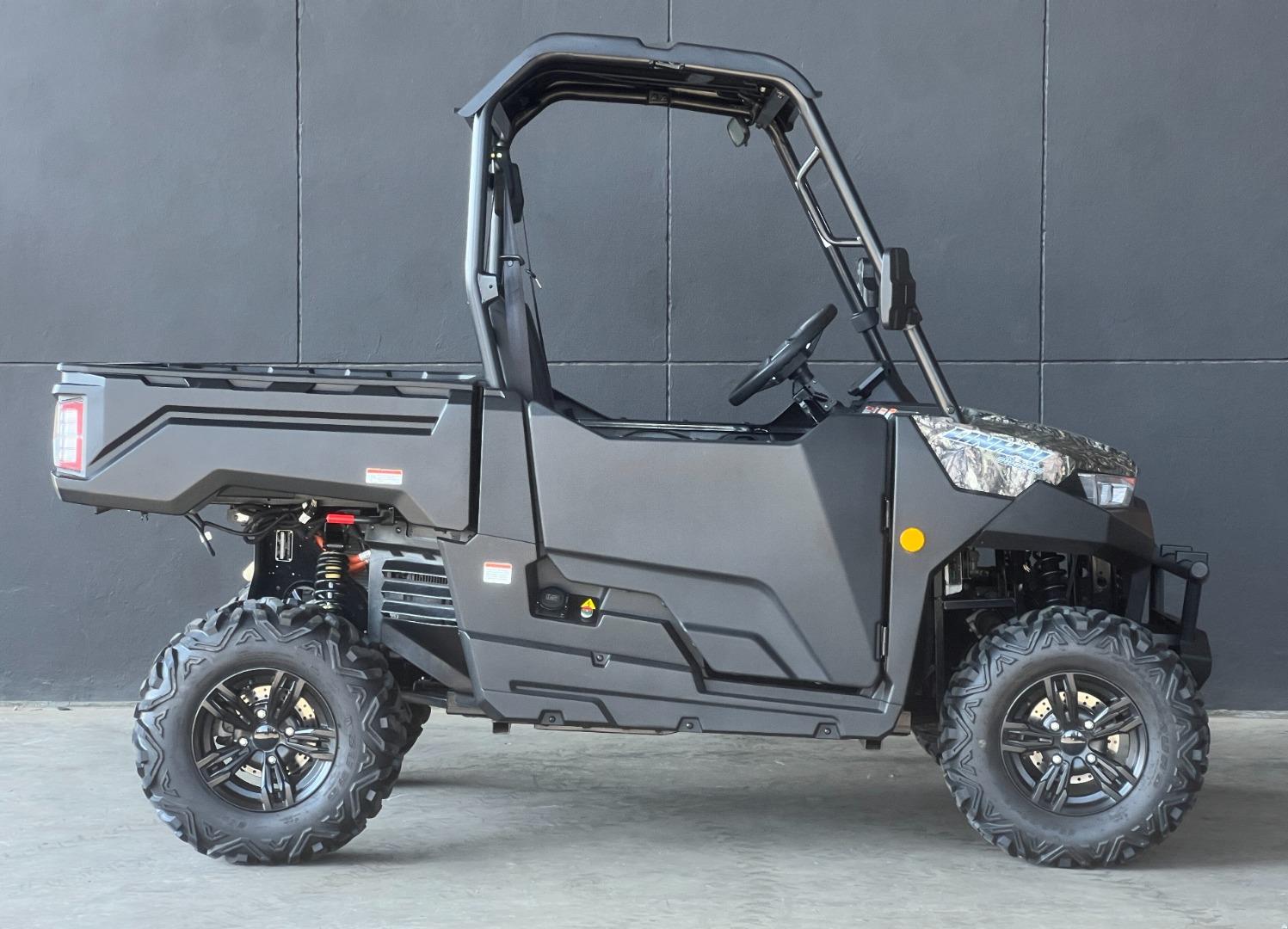

2017 Linhai Electric
The 2017 Linhai Electric ATV is powered by a 4 kW 48 V DC electric motor equivalent to Approx. 200 cc engine class with 48 V battery system using AGM traction batteries, automatic transmission with Forward/Neutral/Electronic Reverse, electric start, and shaft final drive delivering quiet zero-emission utility performance. The drivetrain uses 2×4 rear-wheel drive for reliable traction across light off-road terrain. The chassis features a durable steel frame with independent McPherson front suspension and independent double wishbone rear suspension with hydraulic shock absorbers for stable handling. Braking is handled by four hydraulic disc brakes for dependable stopping power. The ATV rides on 12-inch wheels fitted with off-road tire sizes AT24x8-12 front and AT24x8-12 rear.

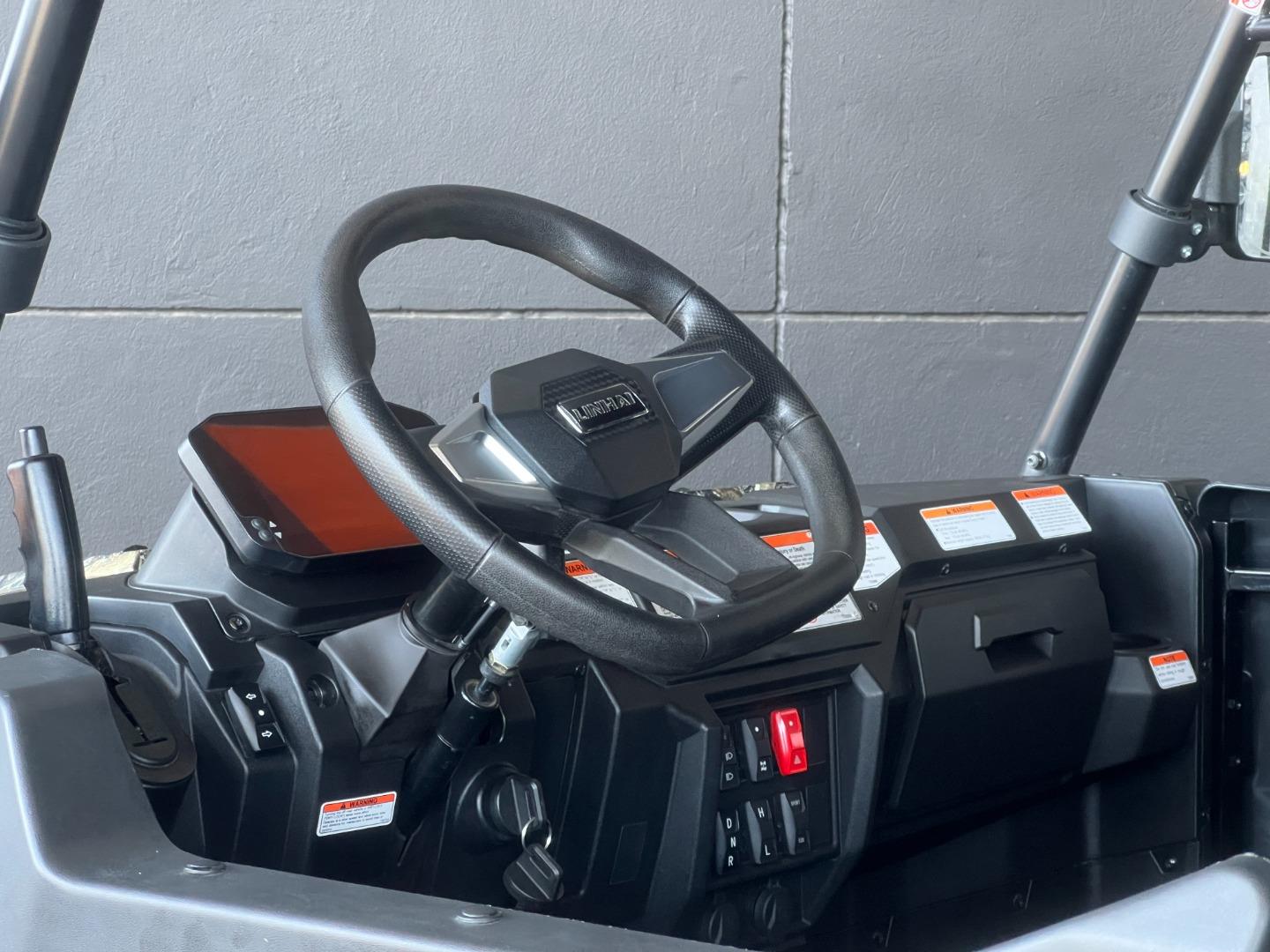

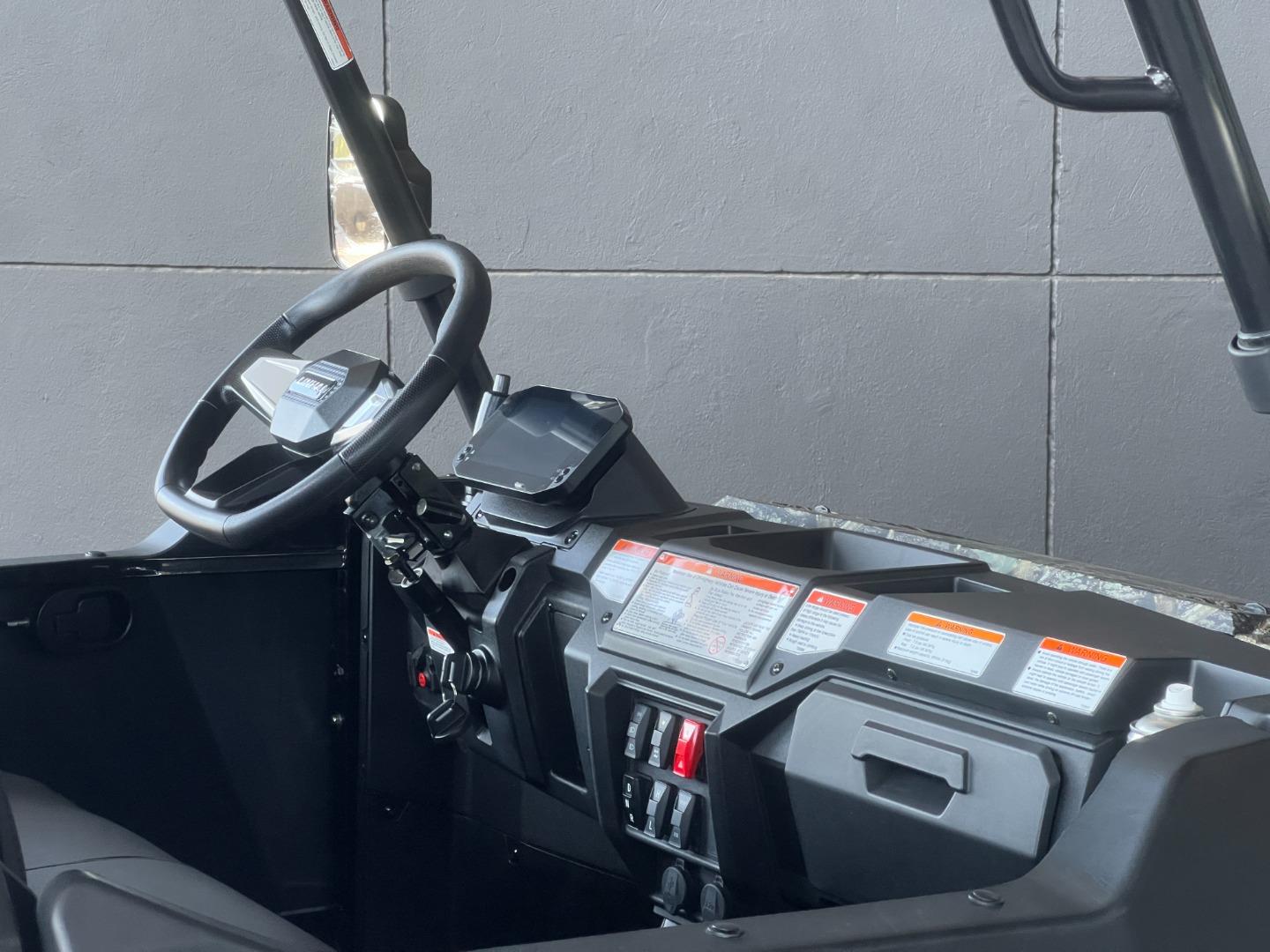

Additional specifications include maximum speed Approx. 45 km/h, range Approx. 30–50 km per charge, charging time Approx. 7–8 hours, Approx. 395 kg weight, 915 mm seat height, Approx. 240 mm ground clearance, wheelbase Approx. 1270 mm, vehicle size Approx. 2150 x 1150 x 1270 mm, digital multifunction display, LED lighting, and front and rear cargo racks for utility use.
