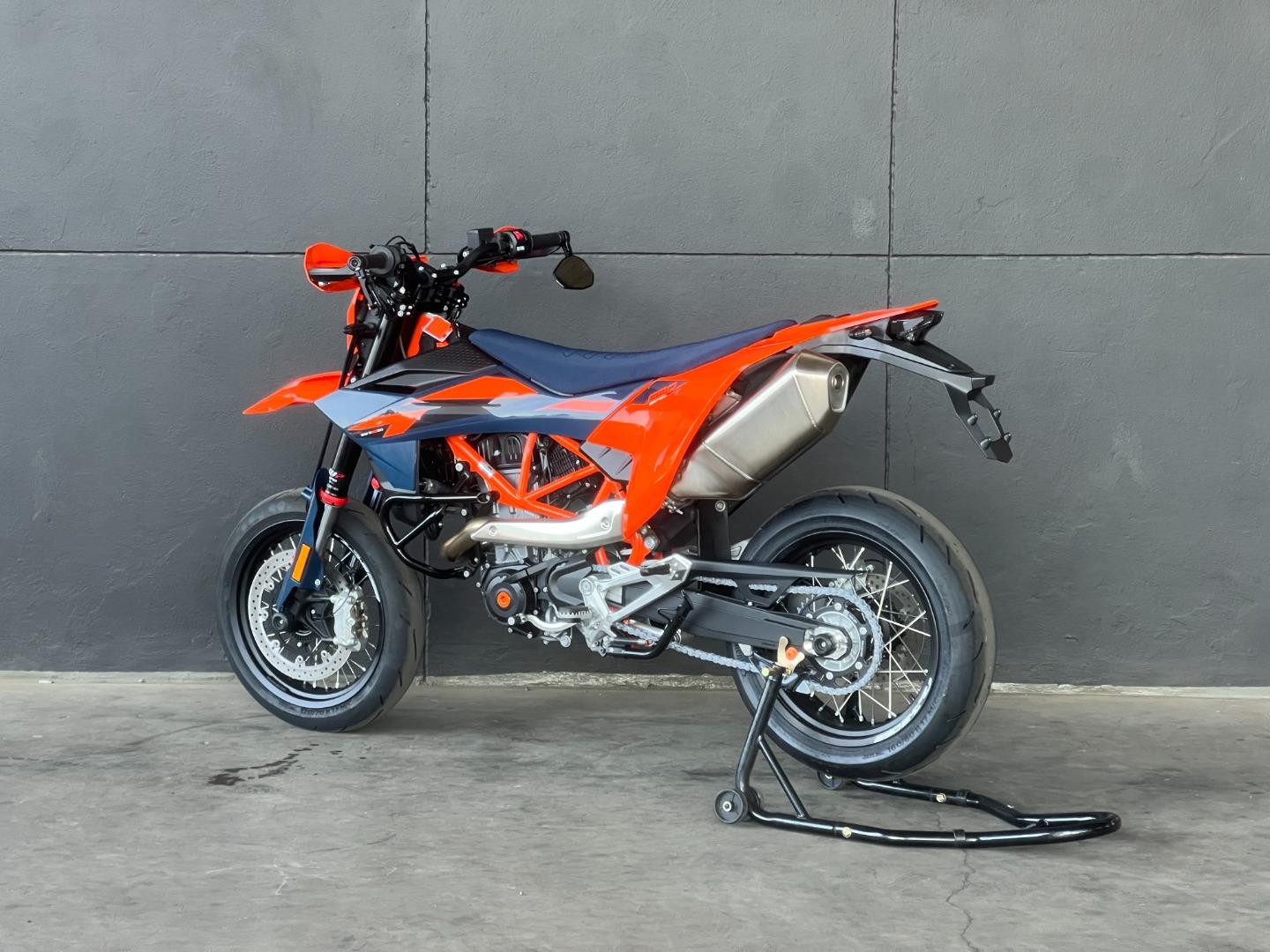

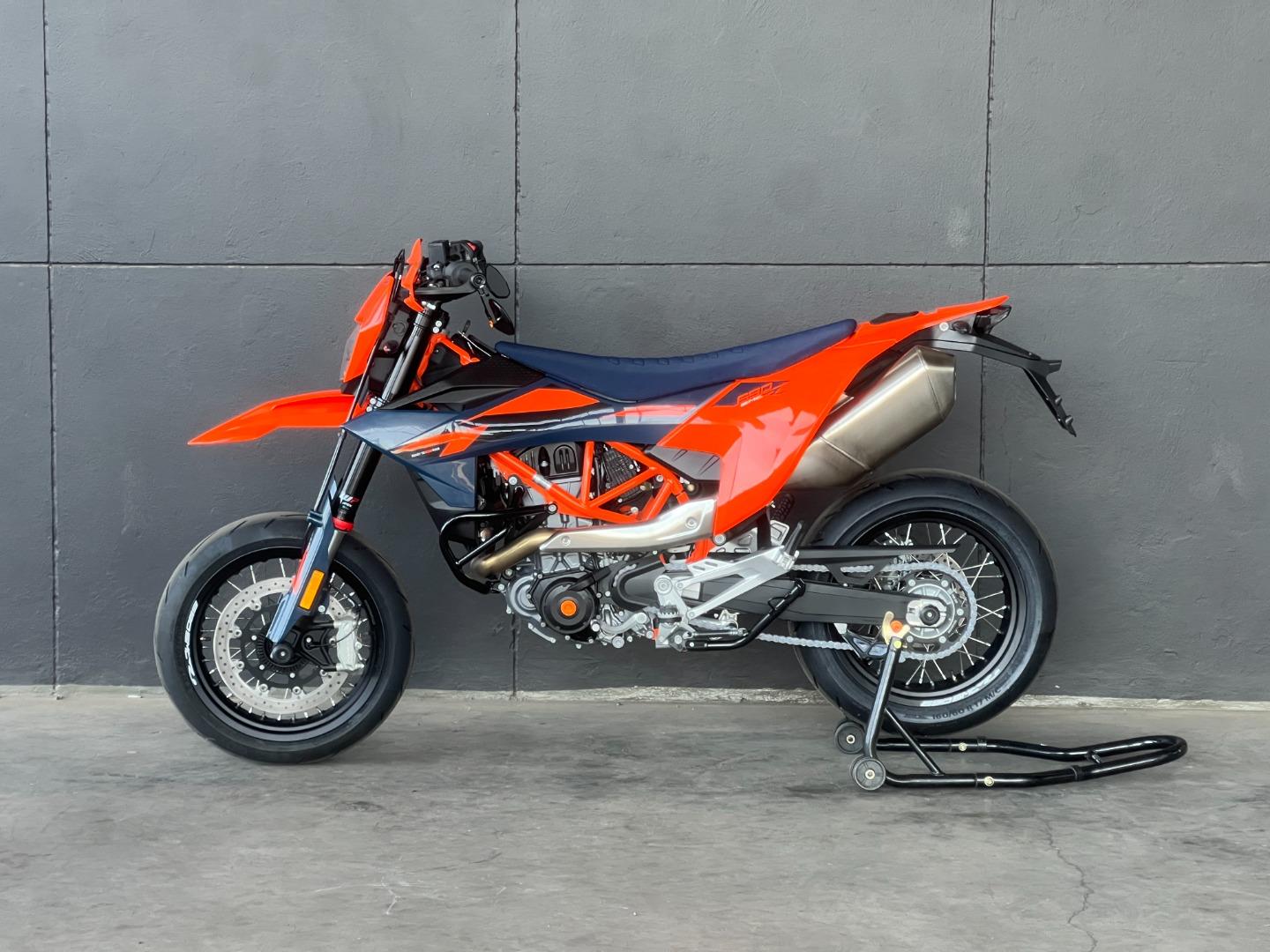

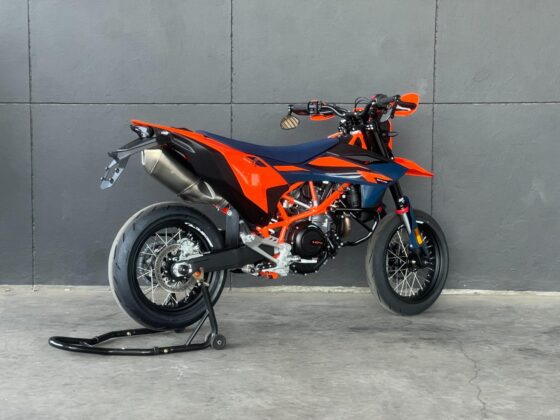

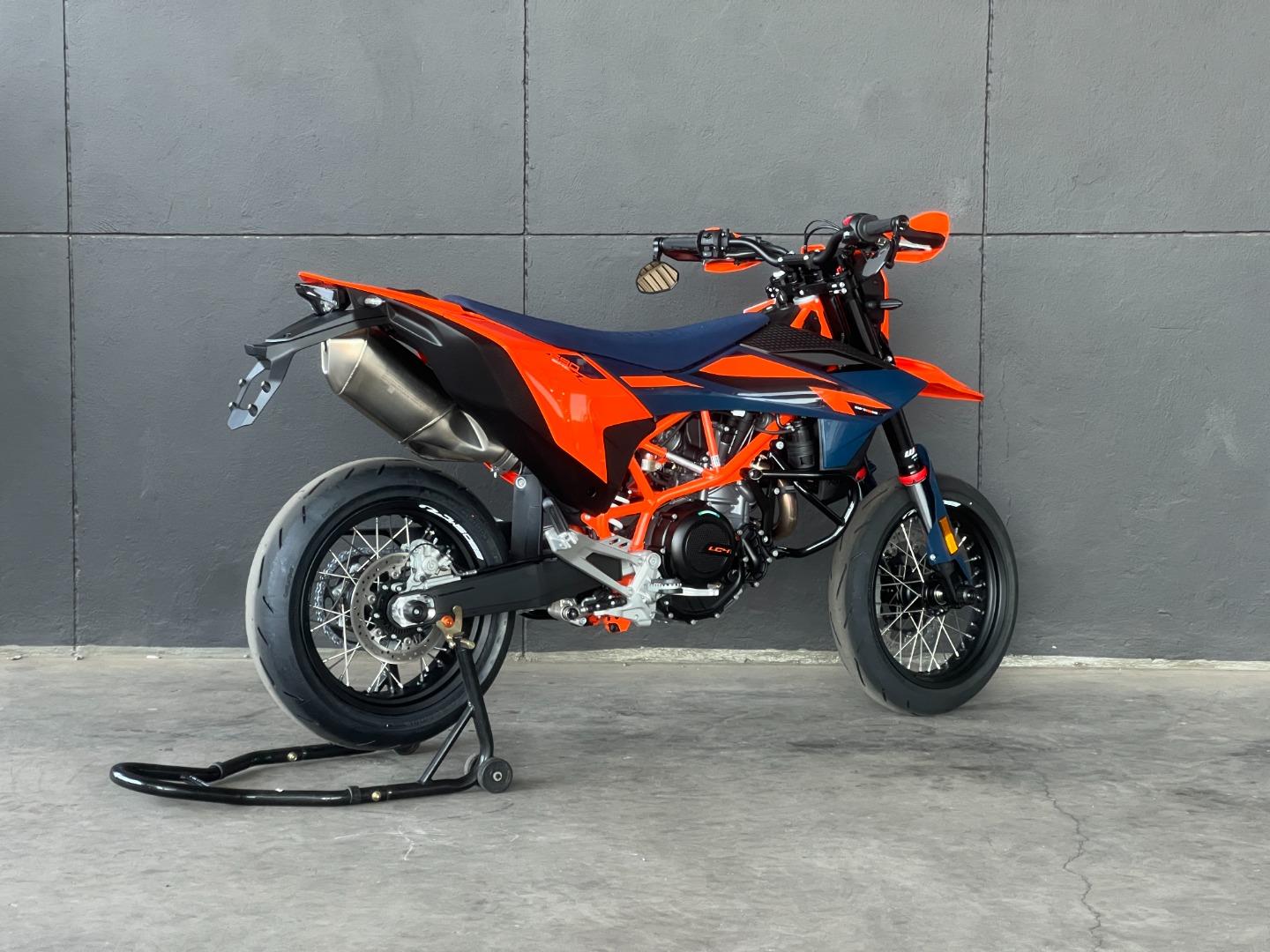

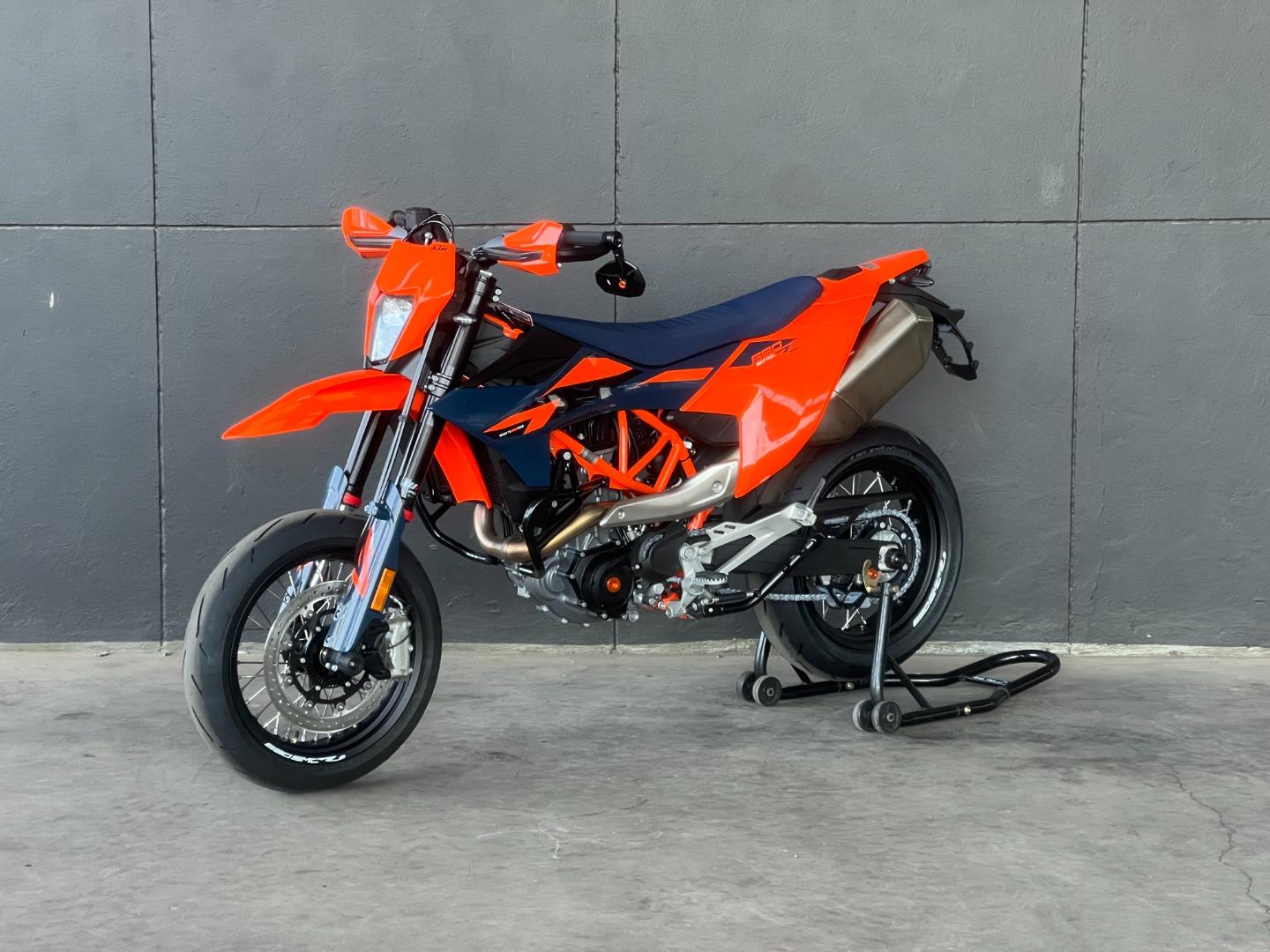

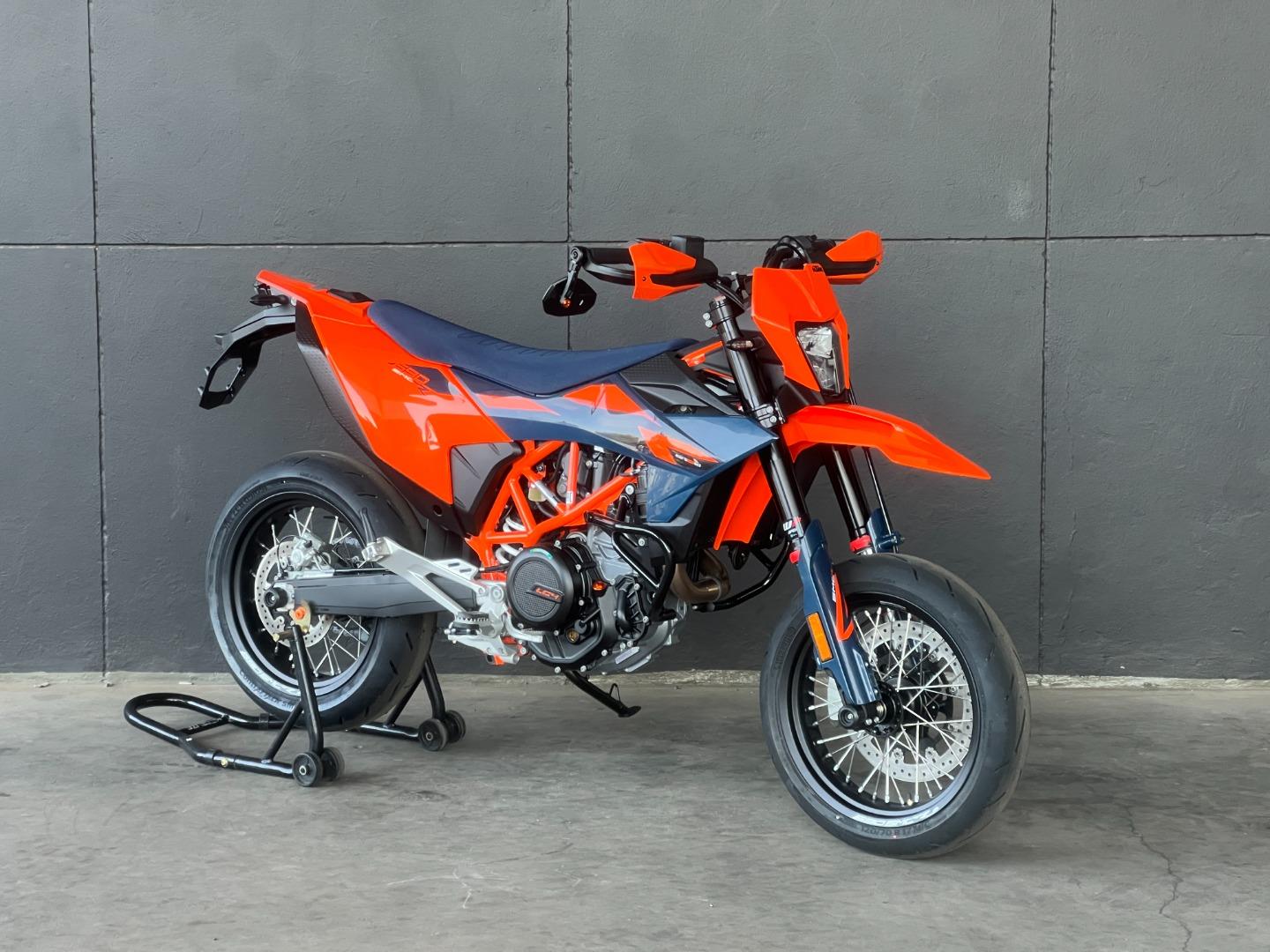

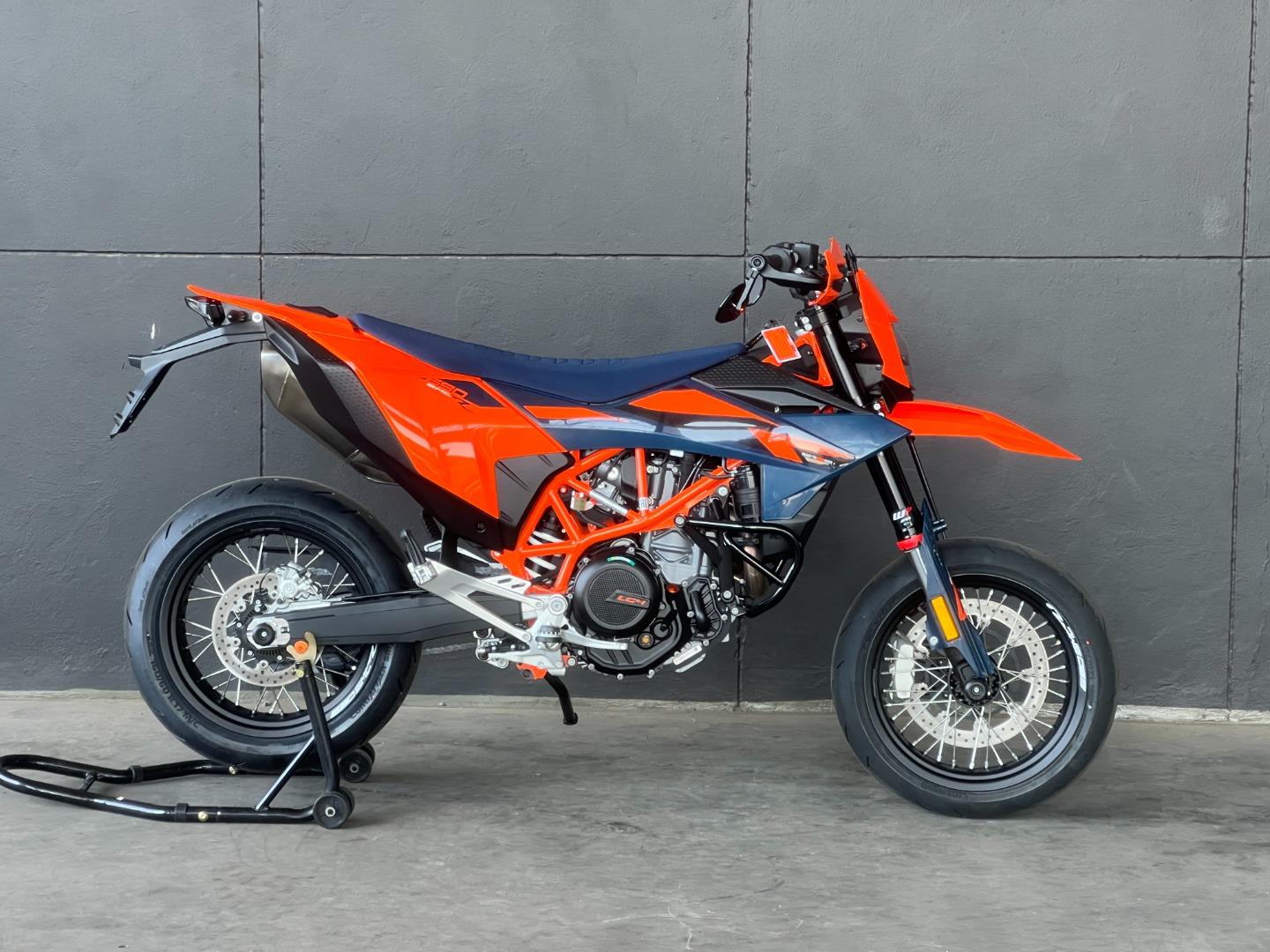

2026 KTM 690 SMC R

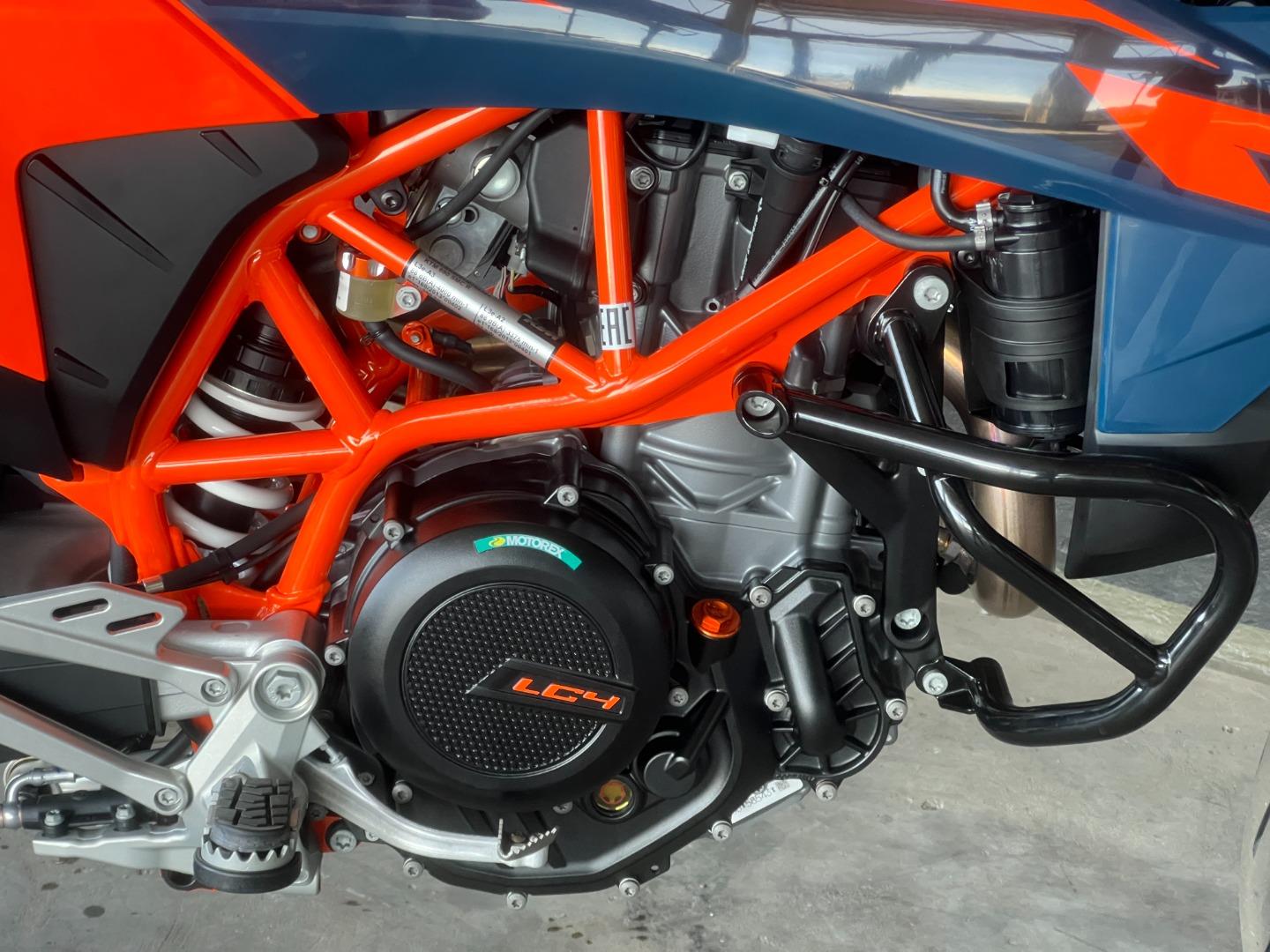

The 2026 KTM 690 SMC R is powered by a 692.7 cc liquid-cooled single-cylinder 4-stroke LC4 engine with Bosch electronic fuel injection and ride-by-wire throttle, electric start, 6-speed transmission, PASC slipper clutch with Quickshifter+, and chain final drive delivering Approx. 74 hp and 73.5 Nm torque for aggressive supermoto performance and rapid acceleration. The chassis features a chromium-molybdenum steel trellis frame with aluminum subframe and fuel tank integration designed for lightweight agility and precise handling. Suspension includes WP APEX 48 mm fully adjustable upside-down front forks providing Approx. 215 mm travel and a WP APEX rear monoshock delivering Approx. 240 mm travel for exceptional road and urban control. Braking is handled by a 320 mm front disc with Brembo 4-piston radial caliper and a 240 mm rear disc with Bosch cornering ABS and Supermoto ABS mode. The motorcycle rides on 17-inch wheels with supermoto tires.
Additional specifications include seat height 890 mm, ground clearance 270 mm, dry weight Approx. 147 kg, and fuel tank capacity 13.5 L.
